FUJIFILM FDR SE Lite
DR Solutions designed with the simplicity and efficiency of FUJIFILM
FUJIFILM FDR ES
DR Solutions designed with the simplicity and efficiency of FUJIFILM
Irradiated Side Sampling (ISS)
Fujifilm’s ISS method provides ultra-sharp imaging with advanced dose efficiency. The design captures the x-ray image from the patient/incident side of the detector. Traditional detector designs capture the image from below the scintillator layer.
This new design allows images to be captured where it is sharper and stronger. The result is an ultra-high-definition image as it was always intended.
Detectors
FDR SE Lite C35
These 14 x 17 in (35 x 43 cm) Cesium Iodide (CsI) wireless detectors complete with 2 removable batteries, battery charger, and a magnetic power cord are a perfect fit for any x-ray room.
FDR SE Lite C43
These full-sized 17 x 17 in (43 x 43 cm) Cesium Iodide (CsI) wireless detectors complete with 2 removable batteries, battery charger, and a magnetic power cord are a perfect fit for any x-ray room.
Detector Features
Image preview in 4 seconds, with a 12 second cycle time
IPX-4 Waterproofing
ISS Technology

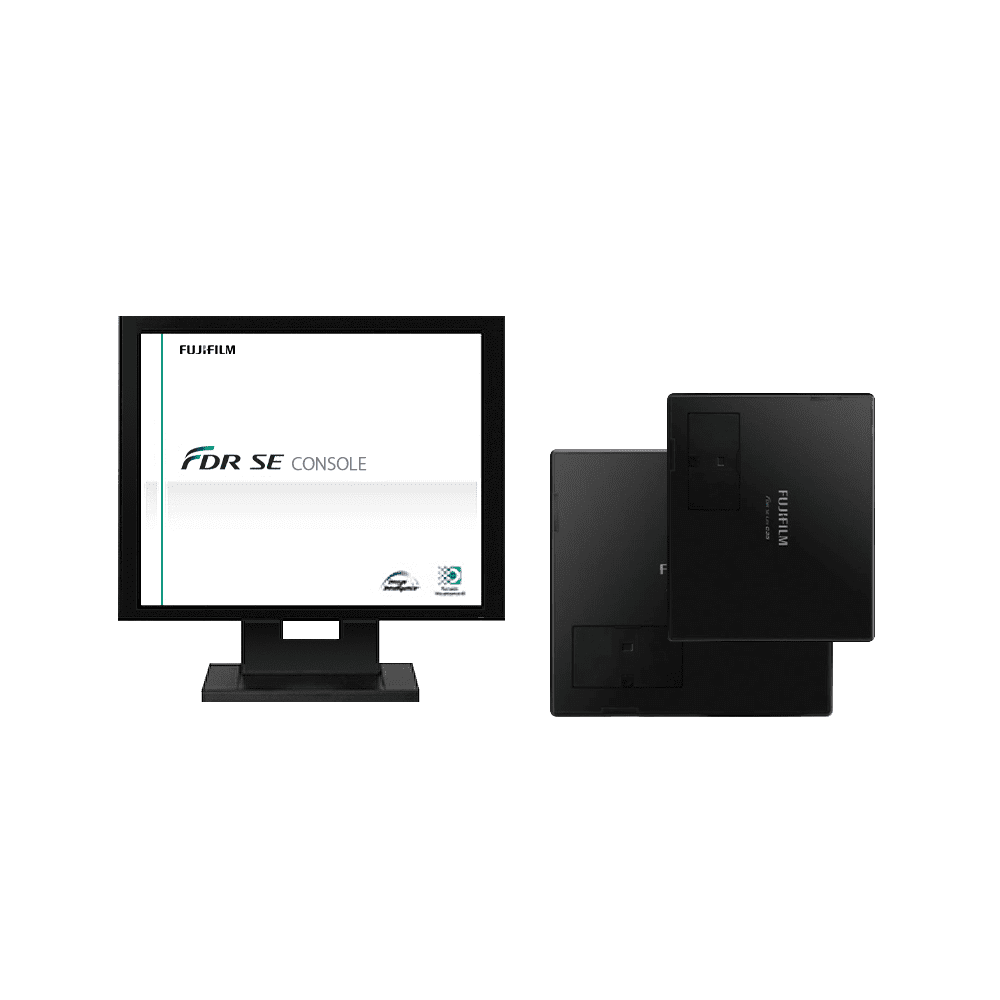

FDR SE Console
Simpler and more efficient, with improved workflow for the Technologist and advanced image processing to provide high-quality diagnostic images.
- The dedicated workstation supports up to two detectors.
- Intuitive, customizable interface with large image display area
- Smart-QA calculates the S/L values and requests confirmation when outside the normal range
- Dynamic Visualization automatically recognizes region of interest and applies optimum image processing parameters to deliver reproducible, high-quality images every time
- QC adjustments include exam reprocessing, sensitivity, latitude, density, and contrast
- Trimming simplifies off center-positioned exams readjusting display size for small anatomy
- FNC (Flexible Noise Control) suppresses noise without loss of diagnostic information or sharpness
- MFP (Multi-Frequency Processing) optimizes both dense and peripheral tissues
- GPR (Grid Pattern Removal) prevents grid moire patterns
- Image Magnification enables full-screen image display, magnification, and zoom
- Free text annotation allows typed comments to be added to the digital image
- Technologist editing tools include shuttering (black borders) and movable annotation markers
- Basic security supports customizable user restrictions based on technologist log in/log out
- DICOM Print outputs images to a DICOM printer.
- Hardware includes a desktop CPU, mouse, keyboard, barcode reader, and 19” color touchscreen LCD monitor
Quality Assurance
The DR QC Phantom allows comprehensive quality assurance testing for DR Detectors and associated software. The phantom enables seven quality assurance assessments for monthly and semi-annual evaluation, including exposure linearity and sensitivity, high and low contrast reproducibility, artifact and residual image detection, image resolution, collimator beam alignment, measurement tool accuracy, and display jitter QA testing.
Technical Specifications
Detectors
| Detectors | C35 Lite | C43 Lite |
|---|---|---|
| Detector Size | 14 X 17 in (35 x 43 cm) | 17 x 17 in (43 x 43 cm) |
| Scintillator | Cesium Iodide (CsI) | Cesium Iodide (CsI) |
| Connection Type | Wireless | Wireless |
| Pixel Matrix | 2836 x 2336 | 2836 x 2832 |
| Bit Depth | 16 bit | 16 bit |
| Pixel Pitch | 150 μm | 150 μm |
| Dimensions | 18.1 x 15.1 x 0.6 in (46 x 38.4 x 1.5 cm) | 18.1 x 18.1 x 0.6 in (46 x 46 x 1.5 cm) |
| Image Preview | 4 seconds | 4 seconds |
| Cycle Time | 12 seconds | 12 seconds |
| Battery Performance (Approx.) | 1.7 – 3 hours | 1.7 – 3 hours |
| Weight (Approx. w/battery) | 7 lbs (3.2 kg) | 8.5 lbs (3.9 kg) |
