FWFC

Compact and affordable floor-to-wall, floor-to-ceiling mounted system

FWFC

Compact and affordable floor-to-wall, floor-to-ceiling mounted system

Affordable Quality and Reliability

The DEL MEDICAL FWFC System offers an affordable, flexible solution for medical imaging centers and urgent care facilities looking to maximize space and minimize room modifications. It features a secure floor rail and an upper wall or ceiling-mounted rail for installation flexibility, effortless longitudinal travel, and quick positioning.

The FWFC System might be the most affordable radiographic system in the DEL MEDICAL product line, but its outstanding build quality and performance make it a perfect fit for lower-volume facilities looking to enhance their diagnostic imaging capabilities. Built in the USA, it is prepared to deliver many years of continuous use and exceptional user satisfaction.

Compact Precision

The FWFC rotating tube stand offers exceptional versatility and accuracy. Its 180° column rotation, centering detent, electrical vertical and longitudinal locks, and 9 in (23 cm) transverse travel provide technologists with fast positioning and comprehensive accessibility.

Power and high tension cables are encased in a flexible housing made of non-porous material. This protective tubing provides space-efficient, safe, and easy to clean cable routing.

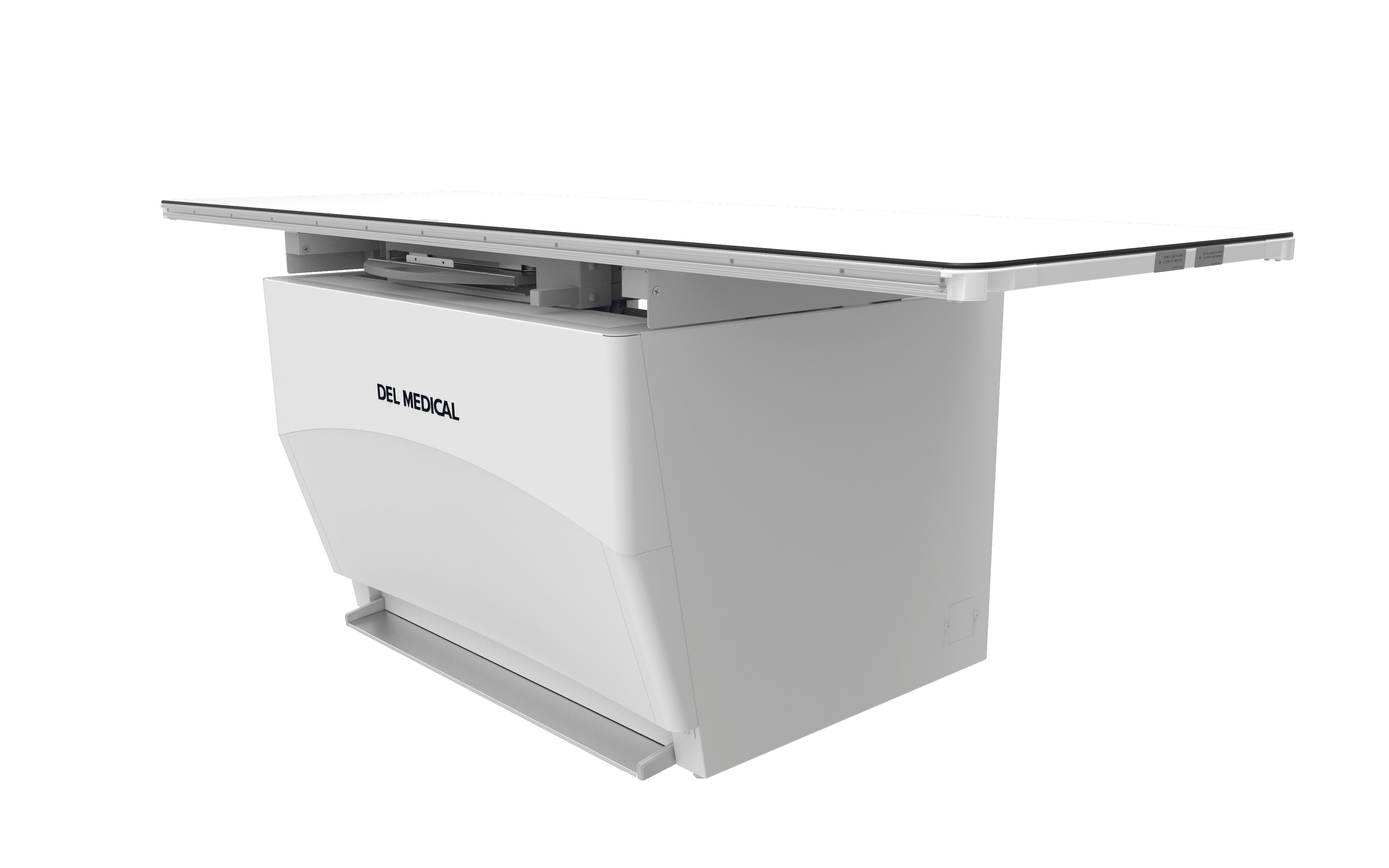

Four-Way Float Top Table

The RT100 table features a 700 lbs (318 kg) patient weight capacity and a stain-resistant floating tabletop that glides freely on a precision roller bearing system. Float top movements are safely controlled by heavy-duty electric locks, activated by a conveniently placed foot treadle release. The standard cassette tray accommodates your choice of 14 x 17 in (35 x 43 cm) or 17 x 17 in (43 x 43 cm) detector with ease. Its all-steel structure and welded base provide maximum strength and reliability. In addition, the RT100’s base can be used to store Anthem generator electronics, making it a great space saver for tight room layouts.

> RT100 and Accessories

Ergonomic Wall Stand

The ultra-compact VS100 upright is powered by an electric lock release handle and dual counterweight cables for added patient and user safety. Its expansive vertical travel of 58 in (148 cm) enables a complete range of exams from skull to weight-bearing knee and ankle exams.


> VS100 Wall Stand

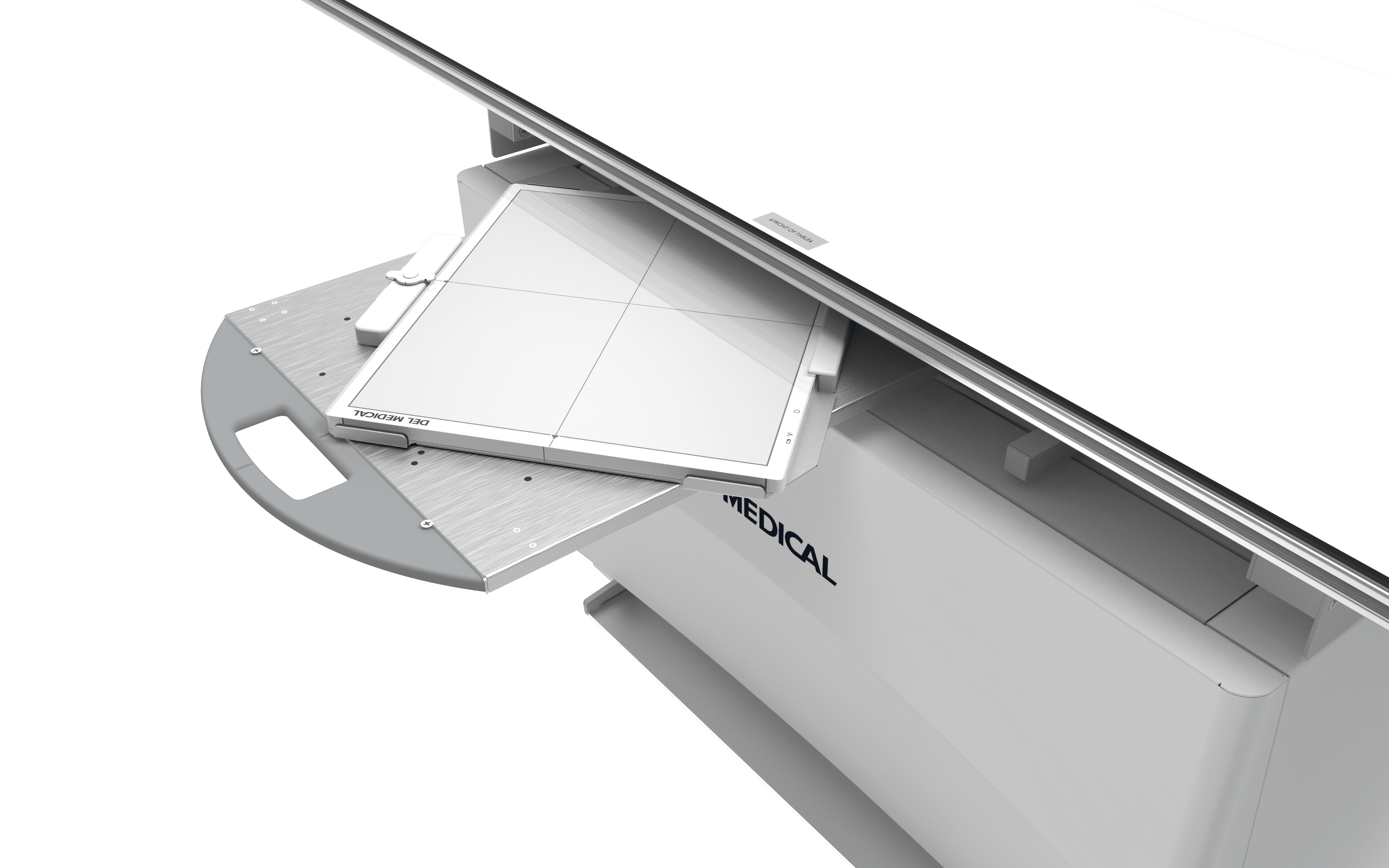

Rotating Tray (Optional)

The easy-to-use rotating tray enables manual rotation of the DR detector. The stable one-handed operation supports fast portrait-to-landscape positioning without ever removing the detector from the tray. Fully extended steel slides activate locking mechanisms to assure detector protection when loading and unloading — designed to accommodate a wide array of ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.

Technical Specifications

Ceiling HeightMinimum 96 in (244 cm)
Maximum 116 in (295 cm)
Vertical TravelMinimum 12 in (26.5 cm)
Maximum 73 in (189 cm)
Longitudinal Travel72 in (183 cm) with 8 ft rail
Rail Longitudinal Length8 ft (2.4 m) / Optional 6 ft (1.8 m), 10 ft (3 m) or 12 ft (3.7 m)
Transverse Travel9 in (23 cm)
Column Rotation±180° with detents 0°, 90°, 90°
Tube Rotation+180°, -180°
Weight200 lbs (91 kg)
Power Requirements115 (1 A) / 230 (2 A) VAC 50 / 60 Hz
Patient Load Capacity700 lbs (318 kg)
Table Height33.5 in (85 cm)
Table Base Length43 in (109 cm)
Table Base Width29 in (74 cm)
Tabletop Length86.66 in (220 cm)
Tabletop Width32 in (81 cm)
Tabletop MovementLongitudinal 51.50 in (131 cm)
Transverse 9.5 in (24 cm)
Total Bucky TravelLongitudinal 11.25 in (28 cm)
Tabletop-to-film Distance3.2 in (8 cm)
Tabletop Beam AttenuationStandard table less than 0.7 mm aluminum
Carbon fiber less than 0.4 mm aluminum
Weight387 lbs (176 kg)
Power Requirements120 / 230-240 VAC 50 / 60 Hz (Max current 0.75 Amps)
Options– 78 in (198 cm) tabletop length
– Carbon fiber tabletop
– Lateral cassette holder
– Table handgrips
– Compression band
– Grids
– Grid cabinet
– Reciprocating bucky
– Rotating tray
– AEC
Column Height85.1 in (216.1 cm)
Receptor Center Height Max72.4 in (183.9 cm)
Receptor Center Height Min14 in (35.6 cm)
Receptor Travel58.4 in (148.3 cm)
Wall to Receptor Distance10.85 in (27.6 cm)
Front Panel Aluminum Equivalency0.4 mm
Weight280 lbs (127 kg
Power Requirements24 V DC at 0.5 Amps

FWFC Tube Stand

FWFC Tube Stand
Ceiling HeightMinimum 96 in (244 cm)
Maximum 116 in (295 cm)
Vertical TravelMinimum 12 in (26.5 cm)
Maximum 73 in (189 cm)
Longitudinal Travel72 in (183 cm) with 8 ft rail
Rail Longitudinal Length8 ft (2.4 m) / Optional 6 ft (1.8 m), 10 ft (3 m) or 12 ft (3.7 m)
Transverse Travel9 in (23 cm)
Column Rotation±180° with detents 0°, 90°, 90°
Tube Rotation+180°, -180°
Weight200 lbs (91 kg)
Power Requirements115 (1 A) / 230 (2 A) VAC 50 / 60 Hz

RT100 Radiographic Table

RT100 Radiographic Table
Patient Load Capacity700 lbs (318 kg)
Table Height33.5 in (85 cm)
Table Base Length43 in (109 cm)
Table Base Width29 in (74 cm)
Tabletop Length86.66 in (220 cm)
Tabletop Width32 in (81 cm)
Tabletop MovementLongitudinal 51.50 in (131 cm)
Transverse 9.5 in (24 cm)
Total Bucky TravelLongitudinal 11.25 in (28 cm)
Tabletop-to-film Distance3.2 in (8 cm)
Tabletop Beam AttenuationStandard table less than 0.7 mm aluminum
Carbon fiber less than 0.4 mm aluminum
Weight387 lbs (176 kg)
Power Requirements120 / 230-240 VAC 50 / 60 Hz (Max current 0.75 Amps)
Options– 78 in (198 cm) tabletop length
– Carbon fiber tabletop
– Lateral cassette holder
– Table handgrips
– Compression band
– Grids
– Grid cabinet
– Reciprocating bucky
– Rotating tray
– AEC

VS100 Wall Stand

VS100 Wall Stand
Column Height85.1 in (216.1 cm)
Receptor Center Height Max72.4 in (183.9 cm)
Receptor Center Height Min14 in (35.6 cm)
Receptor Travel58.4 in (148.3 cm)
Wall to Receptor Distance10.85 in (27.6 cm)
Front Panel Aluminum Equivalency0.4 mm
Weight280 lbs (127 kg
Power Requirements24 V DC at 0.5 Amps
